Neural Cellular Automata

Using Neural Networks to simulate life with cellular automata.

The Neural Cellular Automata project is a research project under Monash DeepNeuron; an AI and HPC student team at Monash University. Neural Cellular Automata is an emerging research field, enabled by recent improvements in compute that combines the powers of localised behaviour with the learnable parameters of neural networks.

Cellular Automata

Before understanding Neural Cellular Automata (NCA), it's only natural to cover Cellular Automata (CA), the superset of NCA first. Cellular Automata are cells (which may be pixels, voxels or a vertex on any graph), each of which has a state. In classical CA, like the famous Conway's Game of Life, this state is a binary on/off. From each cell's state, and the state of its immediate neighbours, the next state can be computed using a single rule.

• Decentralised Control: each cell "thinks" for itself, in the way that the update rule is only provided with the state of the current cell and its neighbours, there is no central control instructing how each cell should change.
• Emergent Behaviour: from simple rules and local interactions emerges growth, movement and pattern-formation.
• Parallelisable Computation: as each cell is effectively independent from each other, the next state computations of CAs are highly parallelisable, lending themselves naturally to the GPU.

John Conway's Game of Life

John Conway's Game of Life is one of the simplest CA rulesets that still yields very interesting behaviour. The game takes place on a 2D grid, where each cell is a dead (black) or alive (white). The ruleset is as follows:

• Each cell with one or fewer alive neighbours will die next turn.
• A cell with 2 or 3 alive neighbours will live.
• Cells with 4 or more alive neighbours will die as if by overcrowding.

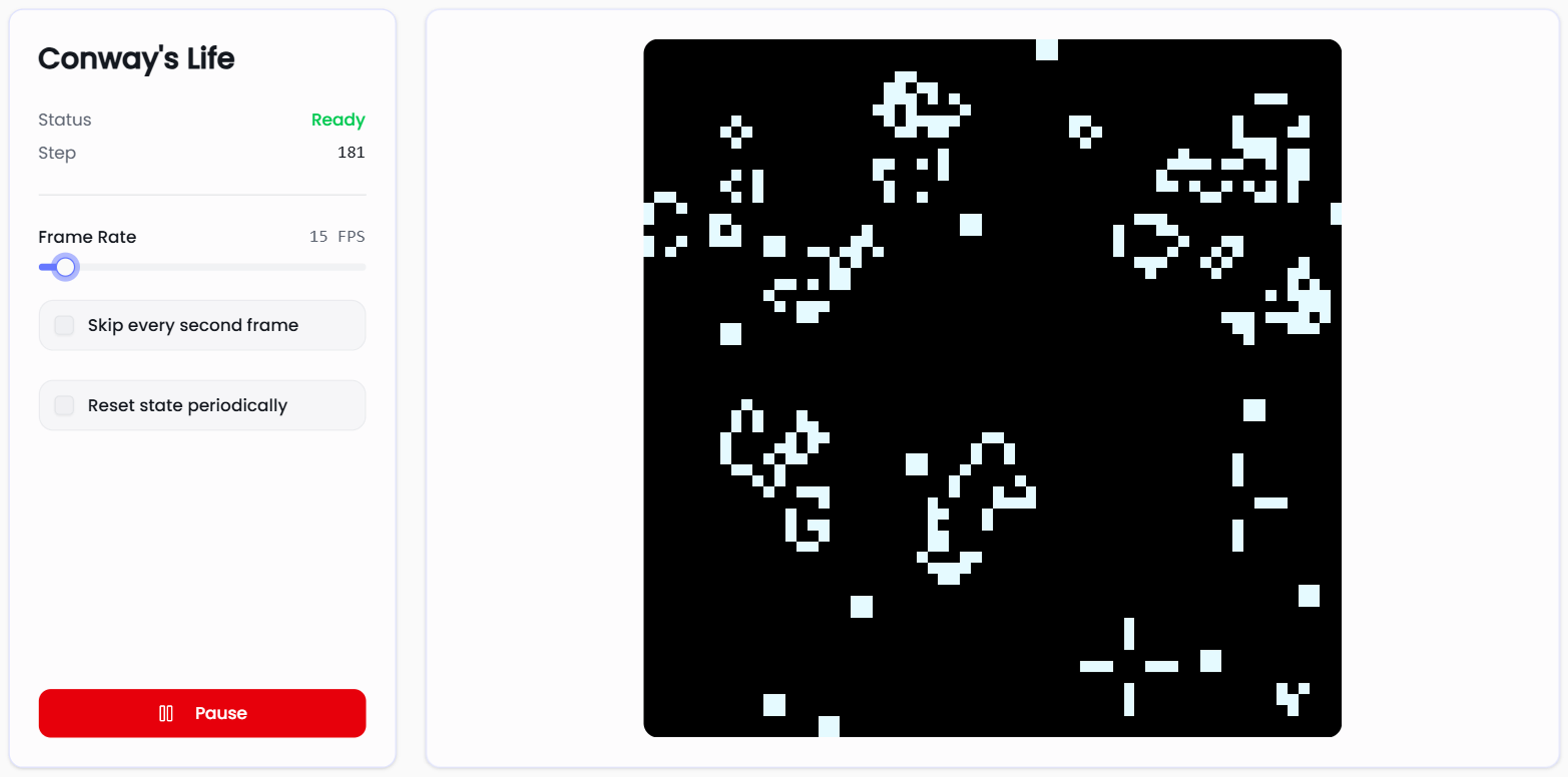

From these rules common patterns such as blocks, blinkers and spaceships emerge. Check out our simulation on the NeuralCA website to see them for yourself.

Continuous Cellular Automata

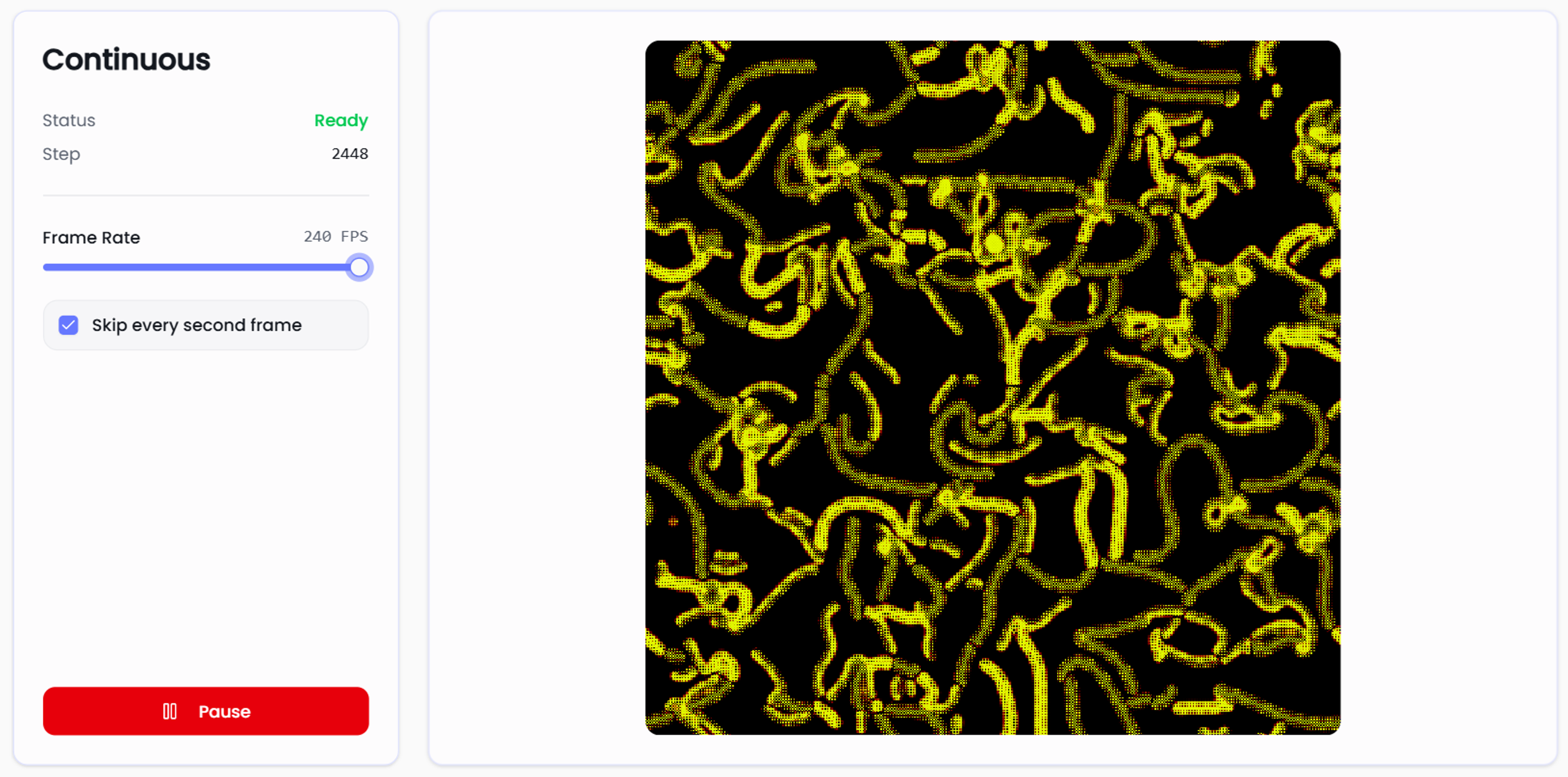

While classical models such as Conway's Life and Larger than Life employ a simple binary state, there's no reason why we can't swap our state for continuous values from 0 to 1 and our ruleset with equations. This is the next logical step towards NCA. By instead using the single value as a measure of brightness, our life becomes a touch more complex.

A continous state increases the amount of information stored in each cell, allowing for complex patterns and form to emerge.

Neural Cellular Automata

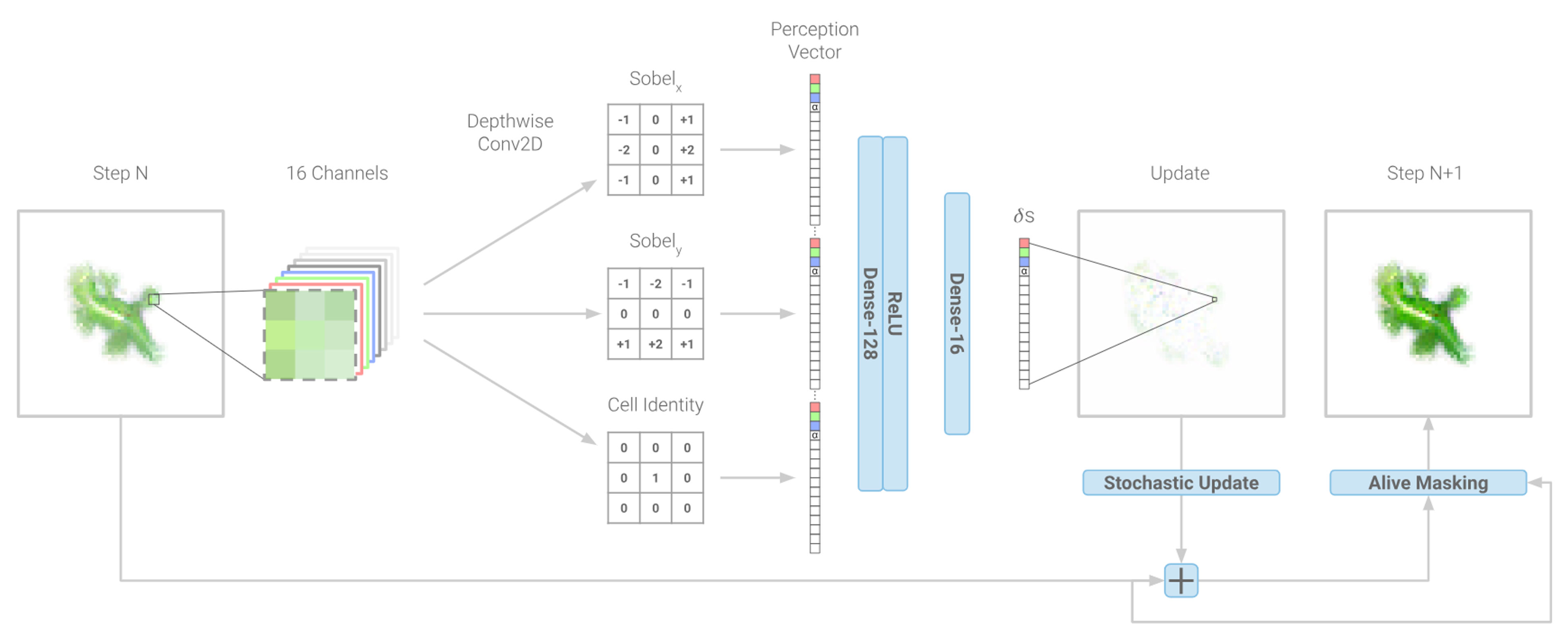

Until now, the next state has been a product of the current state and the cell's 8 immediate neighbours. With Neural Cellular Automata... this doesn't change. Instead of defining a ruleset based on a series of logical conditions or a mathematical formula, instead we drop in a neural network with learned parameters. Just like how our DNA has evolved over time, the training of NCA is not too dissimilar. We first initialise our parameters with random values, let the cells run in a while and we then update the weights to more closely resemble behaviour we want to see. One of the most influential papers in this field came in 2020, titles Growing Neural Cellular Automata as it laid out some of the fundamentals of NCA.

• Differentiable: the update rule needs to be differentiable from start to finish in order to be able to backpropagate losses.
• Simple Architectures: given each cell on the grid has to run a forward pass for every update step, if we want to achieve a smooth frame rate with an acceptable resolution, we need to keep the networks small. For NCA, only 2 or 3 fully-connected layers are required with very few parameters.

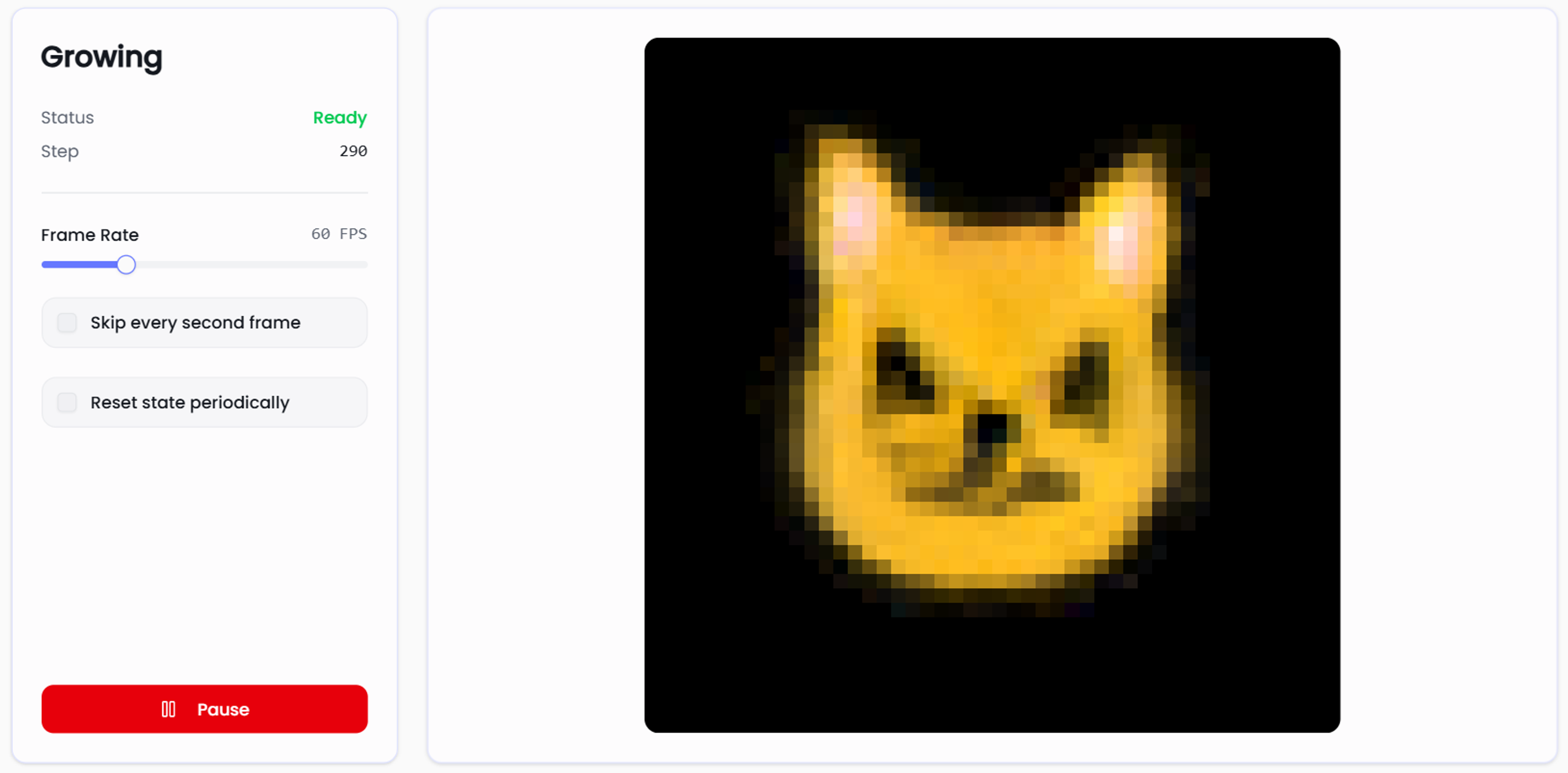

It's worth noting that the state is a bit more complex here. While before we say a single floating point value represent the entire state of a cell, with NCA we expand this state to a vector of floating point values. The Growing model has 16 channels:

• 3 Visible Channels, denoting red, green and blue respectively.
• 1 Alpha Channel determining whether the cell should be considered dead or alive.
• 12 Hidden Channels that the network can decide to use however it likes to convey information to its neighbours.

Training NCA

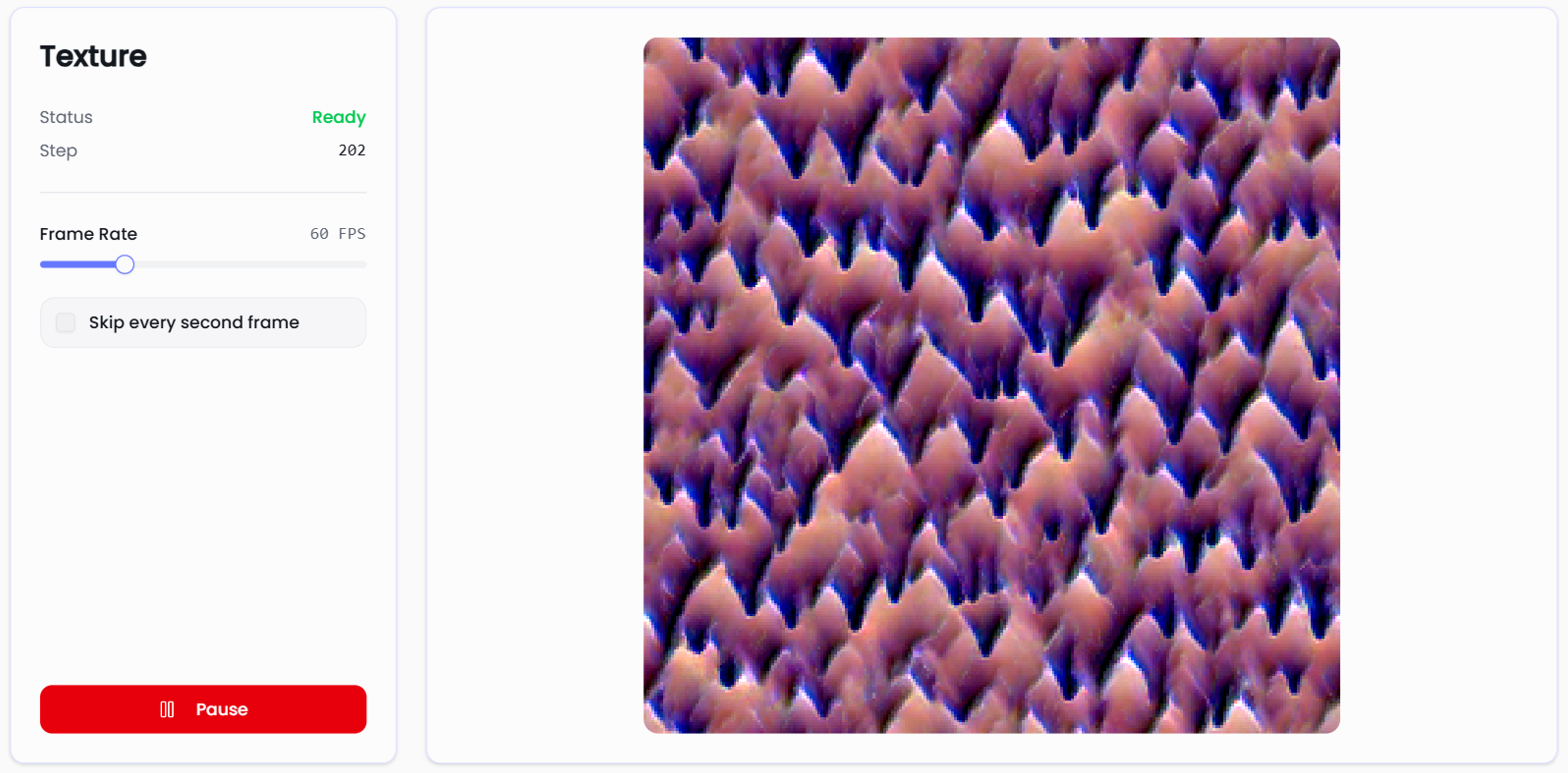

Given the architecture of NCA is so simple, much of the complexity lies in the loss function used to train it. While the Growing model uses a single target image and computes a loss based on the sum of squared differences (SSD) between the current CA state and the target, we can go further and implement less obvious loss functions. A prime example of this is the Texture model that seeks to emulate the look and feel of an image, rather than replicating the target exactly. What results is an image that is not temporally stable, but uses the same colours, shapes and arrangement as was seen in the target.

A great way to programmatically define "the feel" of images is to use the feature layers of image recognition networks such as VGG-16. Fundamentally, image recognition networks use colours, shapes and patterns in order to recognise objects or in this case, classify textures. Thus, if we compare the features that are activated when we pass our target image through VGG-16 to the features activated when we pass our NCA through, what we find a difference, or in other words, a loss.
